Zhejiang jeffel Environmental Science and Technology Co., Ltd.was specializes in the R&D, industry manufacture, engineering application and market promotion of the materials and products used for filtration, separation and purification. Since its inception, which has always focused on research and development to promote a variety of new materials and products were separated by filtration, the polymer separation membrane materials and equipment.

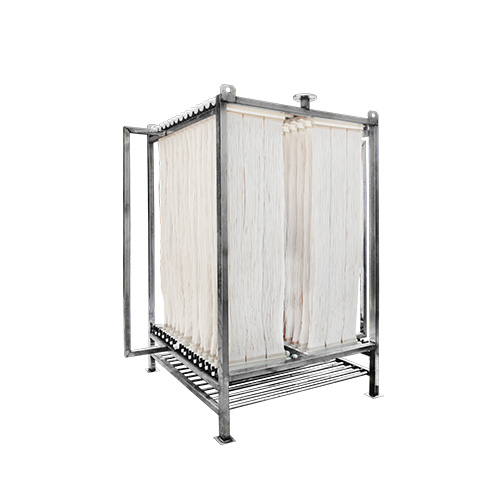

膜箱規格尺寸 | Film Box Size
膜箱型號 Type | 日處理量（m3/d） Daily Capacity | 總膜面積(m2) Total Area | 外形尺寸（L×W×H,mm） Specification | 模式 Mode |
UW50b | 50 | 144 | 650x1320x1600 | 可拆卸膜箱/便捷式膜箱 |
| UW100b | 100 | 264 | 1100x1320x1600 | 可拆卸膜箱/便捷式膜箱 |
| UW130b | 130 | 312 | 1280x1280x2000 | 可拆卸膜箱/便捷式膜箱 |
| UW150b | 150 | 360 | 1360x1050x1580 | 可拆卸膜箱/便捷式膜箱 |
| UW200c | 200 | 520 | 1280x1320x2400 | 可拆卸膜箱 |
| UW300b | 300 | 750 | 1460x1320x2900 | 便捷式膜箱 |
| UW400c | 400 | 1020 | 1650x1500x3000 | 可拆卸膜箱 |
| UW500b | 500 | 1292 | 2050x1500x3000 | 便捷式膜箱 |
| UW550b | 550 | 1300 | 2230x1330x3100 | 便捷式膜箱 |
| MBR膜組件參數 | MBR Membrane Components Specifications | ||
性能 Performance | 設計通量 Design Flux | 10-25L/(m2·h)根據水質不同適當選取 Select According to Different Water Quality |
產水濁度 Produced Water Turbidity | ≤1NTU | |
| TSS | 測不出 | |
產水大腸桿菌 Escherichia Coli In Producing Water | 10FCU/100ml | |
污泥濃度 Mixed Liquid Suspended Solids（MLSS） | 4000—12000mg/L | |
規格 Specifications | 膜絲材質 Membrane Filament Material | PVDF材質（帶襯工藝） PVDF (with liner) |
內徑/外徑 Inside Diameter/outer Diameter | 1.0/2.2mm | |
粘結材料 Bonding Material | 聚氨酯/環氧樹脂 PU/Epoxy Resin | |
連接管材質 Connecting Pipe Material | ABS | |
平均孔徑 Mean Pore Size | 0.03um | |
接口尺寸 Size Of Interface | DN32/G1/2快插 | |
使用條件 Operating Condition | 工作溫度 Operating Temperature | 15—35℃ |
設計工作壓力 Design Operation Pressure | -80Kpa—0 | |
PH耐受范圍 Ph Tolerance Scope | 2-12 | |
曝氣量 Aeration Rate | 膜面積：2.5L/(m2·min) | |
設計反洗壓力 Design Backflush Pressure | 0.05-0.2Mpa | |
維護性清洗 Maintenance Cleaning | 清洗頻率 Cleaning Frequency | 1次/周 Once a week |
清洗時間 Cleaning Time | 30-60min/ time | |
清洗藥劑 Cleaning Agent | 次氯酸鈉 Sodium Hypochlorite: 200-500mg/L; 檸檬酸/草酸 Citric Acid:1000-2000mg/L |
恢復性清洗 Restorative Cleaning | 藥物清洗頻率 Cleaning Frequency by Pharmaceutical | 1次/3個月或跨膜壓差達到50Kpa時 Once three months or Trans-membrane Pressure reaches 50Kpa |
清洗時間 Cleaning Time | 1 次/6小時 Once 6 hours | |
清洗藥劑濃度 Cleaning Agent Concentration | 次氯酸鈉 Sodium Hypochlorite: 2000mg/L; 檸檬酸/草酸 Citric Acid: 2000-4000mg/L |
MW系列膜片信息 | Information of MW series Membrane
規格 Specifications | 膜面積 Membrane Area | 膜片有效長度 Membrane Effective Length /mm | 膜絲數量 Membrane Filament Quantity |
| MW12b | 12m2 | 1070 | 1560 |
| MW16b | 16m2 | 1480 | 1560 |
| MW20b | 20m2 | 1800 | 1560 |
| MW25b | 25m2 | 2290 | 1560 |
| MW36c | 36m2 | 1840 | 2880 |
| MW15d | 15m2 | 1500 | 1440 |
| MW18d | 18m2 | 1800 | 1440 |
| MW23d | 23m2 | 2300 | 1440 |
| MW33e | 33m2 | 1830 | 2660 |
